Gmp General Machine Products 71472 42 Inches 1000 Lbs Mid-Assist Fiber Optic Capstan
Gmp General Machine Products 71472 42 Inches 1000 Lbs Mid-Assist Fiber Optic Capstan

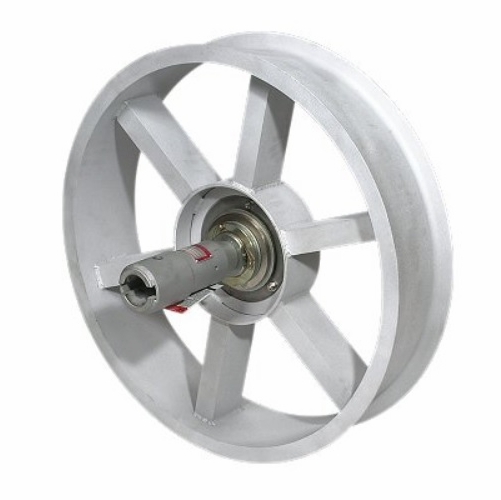

P/N 71472 Mid-Assist Fiber Optic Capstan
Working Diameter 42 Inches (1067 Mm) Working Width 7.5 Inches (190 Mm) Pull 1000 Lbs.-Force (4448 Newtos) Weight 130 Lbs, (58.97)
Mid-Assist Fiber Optic Capstan With Slip Clutch Gmp Offers You A Choice Of Several Lightweight Aluminum Alloy Units That Mount On A Standard 2 7/16 In. (62Mm) Diameter Drive Shaft With Either A Bayonet Or A Cross Pin Type Of Connection.
These Capstans Can Be Used As End Pullers Or Mid-Assist Booster Pullers That Will Allow Long, Straight-Through, Splice-Free Pulls
Offered With A Torque Limiter Between The Drive Spindle And The Inner Hub, Factory Set At Standard 600 Pounds-Force (2669 N-Force), But Maybe Calibrated To Other Torque Values If Requested
Also Available With A Steel Shaft And No Torque Limiter For No-Slip Applications With A Maximum Rated Load Of 1500 Lbs. (6672 N)*
Can Also Be Used With Fiber Optic Cable Blowers To Place Longer Lengths Of Cable Without Splicing
Gmp General Machine Products 71472 42 Inches 1000 Lbs Mid-Assist Fiber Optic Capstan
P/N 71472 Mid-Assist Fiber Optic Capstan
Working Diameter 42 Inches (1067 Mm) Working Width 7.5 Inches (190 Mm) Pull 1000 Lbs.-Force (4448 Newtos) Weight 130 Lbs, (58.97)
Mid-Assist Fiber Optic Capstan With Slip Clutch Gmp Offers You A Choice Of Several Lightweight Aluminum Alloy Units That Mount On A Standard 2 7/16 In. (62Mm) Diameter Drive Shaft With Either A Bayonet Or A Cross Pin Type Of Connection.
These Capstans Can Be Used As End Pullers Or Mid-Assist Booster Pullers That Will Allow Long, Straight-Through, Splice-Free Pulls
Offered With A Torque Limiter Between The Drive Spindle And The Inner Hub, Factory Set At Standard 600 Pounds-Force (2669 N-Force), But Maybe Calibrated To Other Torque Values If Requested
Also Available With A Steel Shaft And No Torque Limiter For No-Slip Applications With A Maximum Rated Load Of 1500 Lbs. (6672 N)*
Can Also Be Used With Fiber Optic Cable Blowers To Place Longer Lengths Of Cable Without Splicing
