GMP General Machine Products 71474 Mid-Assist Fiber Optic Capstan 42 inches- No Clutch
Available*
Item # 31006145
Model # 71474
$4,552.13
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CAPSTANS
Tools
Line Construction- Placing
Capstans
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP General Machine Products 71474 Mid-Assist Fiber Optic Capstan 42 inches- No Clutch
GMP General Machine Products 71474 Mid-Assist Fiber Optic Capstan 42 inches- No Clutch

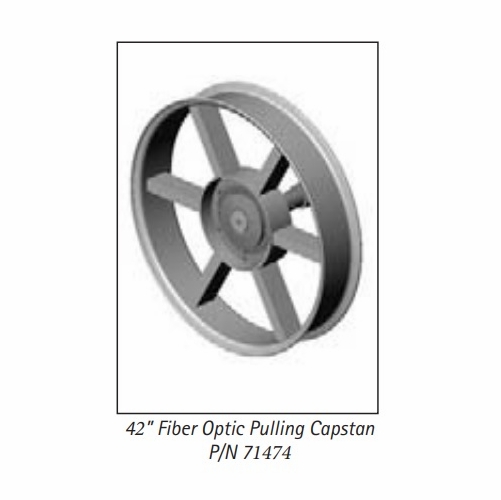

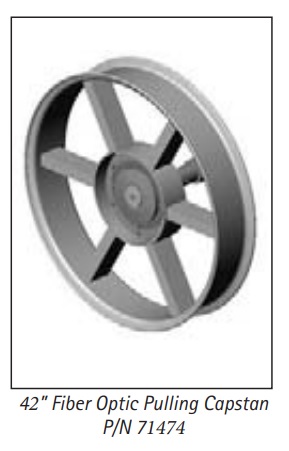

P/N 71474 Mid-Assist Fiber Optic Capstan - No Clutch Working Diameter 42 inches (1067 mm) Working Width 7.5 inches (190 mm) Pull lbs.-force Direct Drive* Newtons Direct Drive* * = max rated load of 1500 lbs. (6672 N) Weight 110 lbs. (50 kg)
GMP offers you a choice of several lightweight aluminum alloy units that are designed to work with the Hydraulically Limited Cable Puller. These capstans are designed with direct drive without a slip clutch. They also can be mounted on a standard 2 7/16 in. (62mm) diameter drive shaft with either a bayonet or a cross pin type of connection.
GMP General Machine Products 71474 Mid-Assist Fiber Optic Capstan 42 inches- No Clutch
P/N 71474 Mid-Assist Fiber Optic Capstan - No Clutch Working Diameter 42 inches (1067 mm) Working Width 7.5 inches (190 mm) Pull lbs.-force Direct Drive* Newtons Direct Drive* * = max rated load of 1500 lbs. (6672 N) Weight 110 lbs. (50 kg)
GMP offers you a choice of several lightweight aluminum alloy units that are designed to work with the Hydraulically Limited Cable Puller. These capstans are designed with direct drive without a slip clutch. They also can be mounted on a standard 2 7/16 in. (62mm) diameter drive shaft with either a bayonet or a cross pin type of connection.
