GMP General Machine Products 71483 Hydraulically Limited Cable Puller w/Frame, Control Valve, Hoses
Available*
Item # 31006150
Model # 71483
$13,948.27
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CAPSTANS
Tools
Line Construction- Placing
Capstans
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

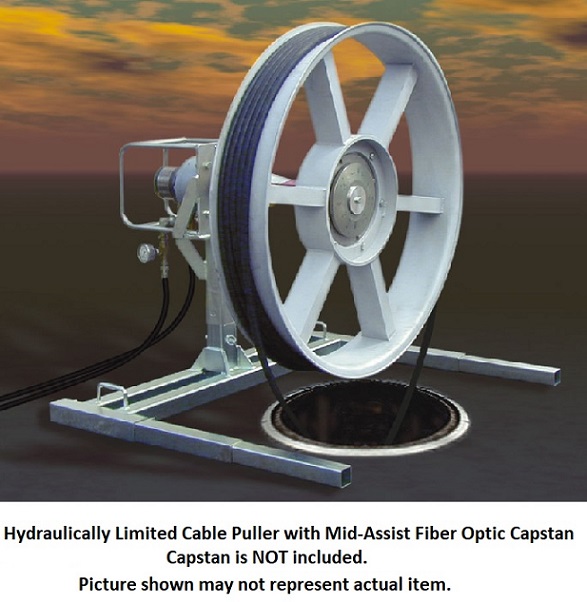

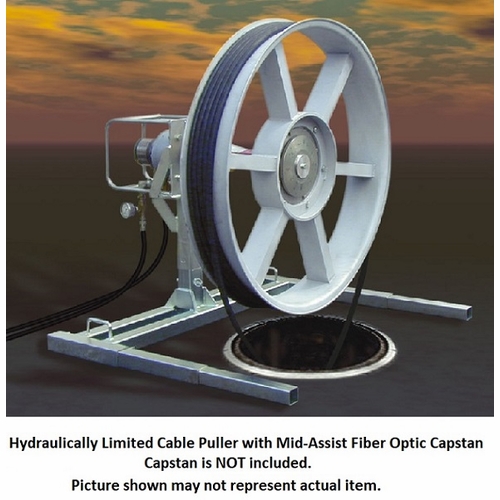

GMP General Machine Products 71483 Hydraulically Limited Cable Puller w/Frame, Control Valve, Hoses
GMP General Machine Products 71483 Hydraulically Limited Cable Puller w/Frame, Control Valve, Hoses
P/N 71483 Hydraulically Limited Cable Puller With Self-Support Frame, Foot Control Valve and (2) hydraulic hoses. Capstan sold separately. Weight 293 lbs. (133 kgs)
The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. Our Cable Puller has all of the features contractors demand, plus GMP quality and durability you can rely on,
Adjustable pull control, up to 1000 lbs. (453kg) maximum on a 40 in. (101cm) diameter capstan
Speeds up to 425 ft/min @ 15 gpm flow
Control panel with pressure gauge, pressure adjustment knob and directional foot control valve
1/2 in. (12.7mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source input
Three versatile setup options are available: Self-Support, Vehicle Receiver Mount and Socket Mount
Portable Hydraulic Power Source that provides 8 gpm @ 2000 psi with 20 feet (6 m) of hydraulic hose
GMP General Machine Products 71483 Hydraulically Limited Cable Puller w/Frame, Control Valve, Hoses
P/N 71483 Hydraulically Limited Cable Puller With Self-Support Frame, Foot Control Valve and (2) hydraulic hoses. Capstan sold separately. Weight 293 lbs. (133 kgs)
The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. Our Cable Puller has all of the features contractors demand, plus GMP quality and durability you can rely on,
Adjustable pull control, up to 1000 lbs. (453kg) maximum on a 40 in. (101cm) diameter capstan
Speeds up to 425 ft/min @ 15 gpm flow
Control panel with pressure gauge, pressure adjustment knob and directional foot control valve
1/2 in. (12.7mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source input
Three versatile setup options are available: Self-Support, Vehicle Receiver Mount and Socket Mount
Portable Hydraulic Power Source that provides 8 gpm @ 2000 psi with 20 feet (6 m) of hydraulic hose
