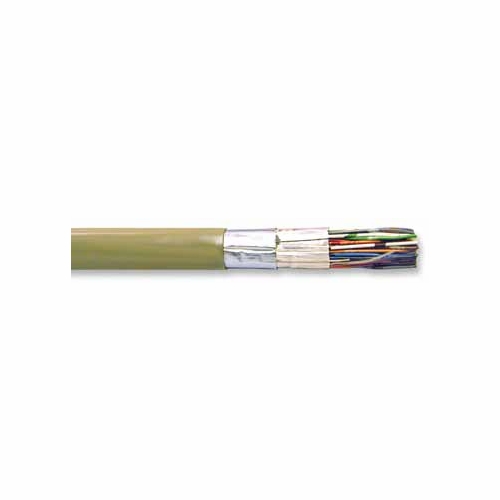

SUPERIOR 55-999-38 30-PAIR 22AWG 613C CABLE PER/1000 foot ***minimum order 5000 foot ***

SUPERIOR 55-999-38 30-PAIR 22AWG 613C CABLE PER/1000' ***minimum order 5000'*** Product Description The 600C Series Central Office (CO) Cables are designed for use between switching and transmission equipment for distances up to 650 feet. This series offers the lowest attenuation of all the CO cable products by using 22 AWG conductors. It is manufactured with a dual foil shield for additional Electromagnetic Interference (EMI) reduction. The 600C series meets or exceeds all applicable requirements of Telcordia GR-137 specifications. Applications T1/DS1 T1C/DS1C DS2 Features Benefits 22 AWG tinned copper conductors Low attenuation, enabling longer run length; tinned copper conductors minimize change in wire-wrap joint resistance Solid Polyolefin insulation Greater crush resistance and improved transmission characteristics; smaller cable over dual insulated type 100 Ohm nominal Impedance Impedance mismatch with Outside Plant (OSP) cables is minimized Dual aluminum foil shield Higher EMI isolation over a single foil shield; smaller cable diameter than 600B Series cables Tinned copper drain wire Easier termination and superior grounding CMR listed Suitable for horizontal and riser installations Rip cord Added ease of jacket removal Band marked Easy identification of conductor ring mates

Conductor Tinned copper AWG (mm) 22 (0.6) Insulation Polyolefin Shield Dual aluminum foil Jacket Gray PVC Jacket Marking Printed at 2 foot intervals on the jacket; information includes product identification, pair count, UL information and sequential lengths in feet and meters Package Reel Standards Compliance Telcordia GR-137-CORE Telcordia GR-499-CORE (Pulse shape compliance at 650 feet) UL 444 CMR RoHS-compliant
