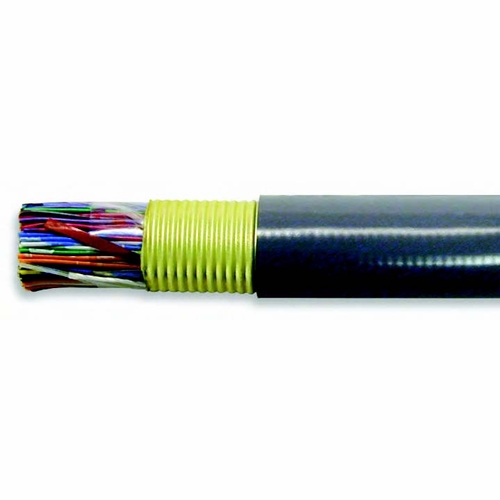

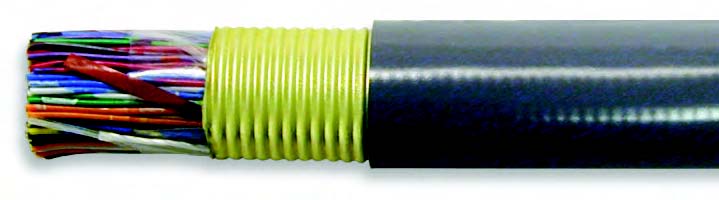

SUPERIOR 55-B99-24 50-PAIR 24AWG ABMM CABLE PER/1000 foot
Available*
Item # 55238000
Model # 50PR 24 ABMM
$2,187.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CABLE
Wire and Cable
Dry- Aircore- Non filled
Sheilded
Superior Essex Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SUPERIOR 55-B99-24 50-PAIR 24AWG ABMM CABLE PER/1000' ABAM (600B) and ABMM Series Central Office Product Description
The ABAM (600B) and ABMM Series Central Office (CO) Cables are designed for use between switching and transmission equipment for distances up to 650 feet. The ABAM (600B) series offers low attenuation by using 22 AWG conductors. Both ABAM (600B) and ABMM series (24 AWG) are manufactured with a dark gray smooth PVC jacket and a 0.008 inch corrugated aluminum shield for additional Electromagnetic Interference (EMI) reduction. Applications
T1/DS1
T1C/DS1C
DS2
4 Mbps token ring (IEEE 802.5)
10 Mbps 10BASE-T ethernet (IEEE 802.3)
Features Benefits 22 and 24 AWG tinned copper conductors Low attenuation, enabling longer run length; tinned copper conductors minimize change in wire-wrap joint resistance 100 Ohm nominal Impedance Impedance mismatch with Outside Plant (OSP) cables is minimized 0.008 inch corrugated aluminum shield Higher EMI isolation over foil shields; great mechanical strength CMR listed Suitable for horizontal and vertical installations CAT 3 compliant Suitable for network applications Band marked conductors Easy identification of conductor ring mates Rip cord Added ease of jacket removal
Specifications Conductor Tinned copper AWG (mm) ABAM: 22 (0.6) ABMM: 24 (0.5) Insulation PE/PVC Shield Corrugated 8 mil aluminum bonded to the outer jacket Jacket Gray PVC Jacket Marking: Printed at 2 foot intervals on the jacket; information includes product identification, pair count, UL information and sequential lengths in feet and meters Package Reel Performance Compliance Telcordia GR-137 (select sections) Telcordia GR-111 UL 444 CSA C22.2 No. 214-08 UL 1666 ANSI/TIA-568-C.2 RoHS-compliant NRTL Programs UL, c(UL) Listed CMR
