TEMPO 573XL LED SOURCE ST 650NM 573XL 52058784/783310000235
Available*
Item # 80004879
Model # 573XL
$2,627.32
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SOURCE
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Tempo Communications, Inc.
Fiber LED Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

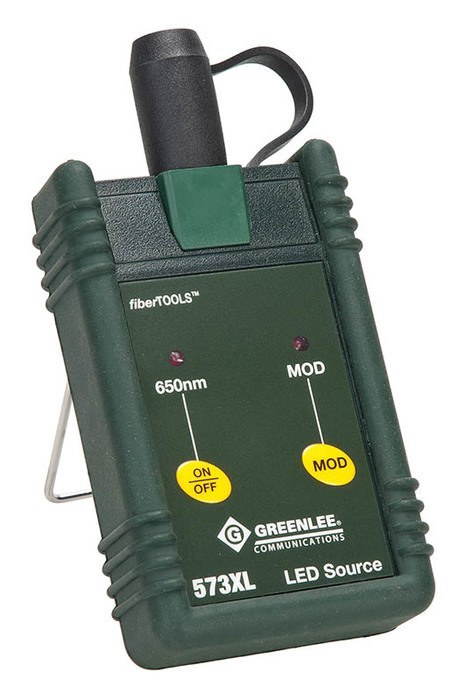

GREENLEE 573XL LED SOURCE ST 650NM 573XL 52058784/783310000235 NEW
DESCRIPTION: LED SOURCE ST 650NM 573XL Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS: Application : For Large Core Plastic And Glass Fiber Connector interface : ST Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 20 nm Measuring Range : 630 - 670 nm Modulation Frequency : 270 kHz, 1 And 2 kHz(±0.5dB) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : ±0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : XL Series Typical Power Output : -15 dBm (±0.5 dB) Wavelength : 650 nm Center
WEIGHT: 241 G (8.5 OZ
CAT #: 573XL UPC #: 52058784/783310000235
PRODUCTS > Fiber Optic Instruments > Handheld > LED Sources > LED SOURCE ST 650NM
DESCRIPTION: LED SOURCE ST 650NM 573XL Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS: Application : For Large Core Plastic And Glass Fiber Connector interface : ST Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 20 nm Measuring Range : 630 - 670 nm Modulation Frequency : 270 kHz, 1 And 2 kHz(±0.5dB) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : ±0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : XL Series Typical Power Output : -15 dBm (±0.5 dB) Wavelength : 650 nm Center
WEIGHT: 241 G (8.5 OZ
CAT #: 573XL UPC #: 52058784/783310000235
PRODUCTS > Fiber Optic Instruments > Handheld > LED Sources > LED SOURCE ST 650NM
