TEMPO 577XL AS100 LED SOURCE 850NM 100/140M 577XL AS100 52058727/783310000297
Available*
Item # 80004888
Model # 577XL
$4,320.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SOURCE
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Tempo Communications, Inc.
Fiber LED Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

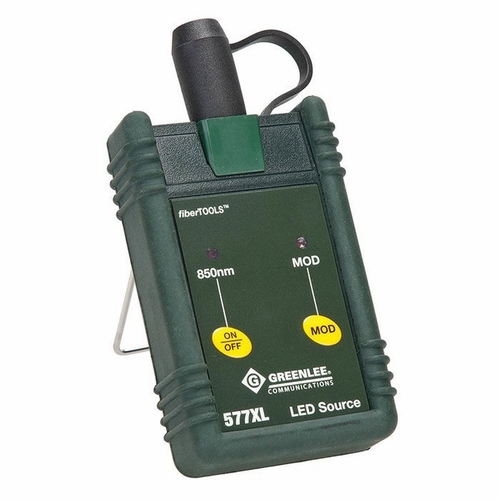

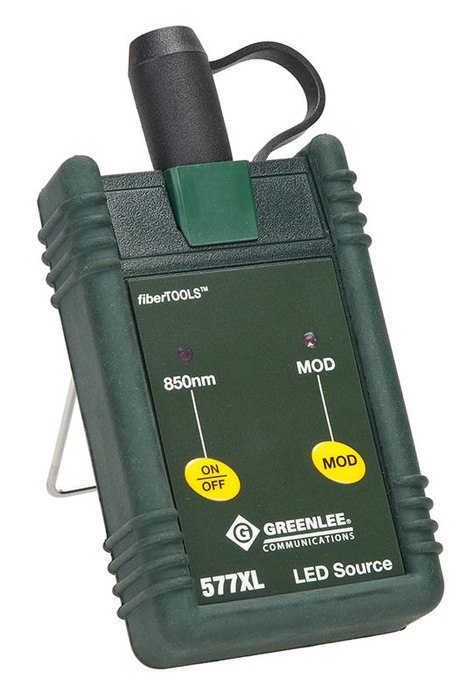

GREENLEE 577XL AS100 LED SOURCE 850NM 100/140M 577XL AS100 52058727/783310000297 NEW
DESCRIPTION: LED SOURCE 850NM 100/140M 577XL AS100
The 577XL LED source provides a light source to measure insertion loss on multi-mode optical fiber.
Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS:
Connector interface : Universal Connector Interface-Physical Contact (UCI-PC) Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 55 nm Measuring Range : 840 - 880 nm Modulation Frequency : 270 kHz, 1 And 2 kHz (± 5%) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : +/- 0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70 °C Sub Brand : fiberTOOLS Type : 577XL Series Typical Power Output : -13 dBm (±0.5 dB) For 100/140 GI FIBER Wavelength : 850 nm Center
WEIGHT: 241 G (8.5 OZ)
CAT #: 577LX AS100 UPC #: 52058727/783310000297
PRODUCTS > Fiber Optic Instruments > HANDHELD > LED Sources > LED SOURCE 850NM 100/140M 577XL AS100
DESCRIPTION: LED SOURCE 850NM 100/140M 577XL AS100
The 577XL LED source provides a light source to measure insertion loss on multi-mode optical fiber.
Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS:
Connector interface : Universal Connector Interface-Physical Contact (UCI-PC) Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 55 nm Measuring Range : 840 - 880 nm Modulation Frequency : 270 kHz, 1 And 2 kHz (± 5%) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : +/- 0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70 °C Sub Brand : fiberTOOLS Type : 577XL Series Typical Power Output : -13 dBm (±0.5 dB) For 100/140 GI FIBER Wavelength : 850 nm Center
WEIGHT: 241 G (8.5 OZ)
CAT #: 577LX AS100 UPC #: 52058727/783310000297
PRODUCTS > Fiber Optic Instruments > HANDHELD > LED Sources > LED SOURCE 850NM 100/140M 577XL AS100
