KLEIN VDV501-851 Ethernet Cable Tester Kit w/Scout® Pro 3 Tester, Remotes, Adapter 092644692260
Available*
Item # 80022191
Model # VDV501-851
$99.98
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TONE/PROBE
Test Equipment
Tone Generators- Probes-Amplifiers
Kits
Klein Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

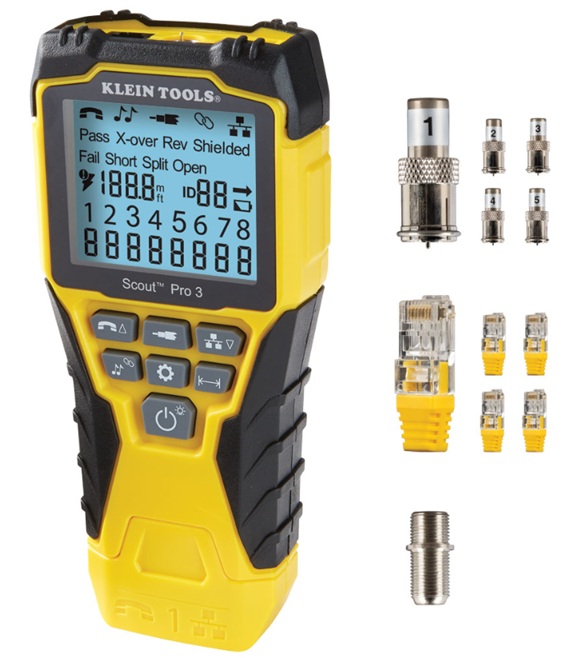

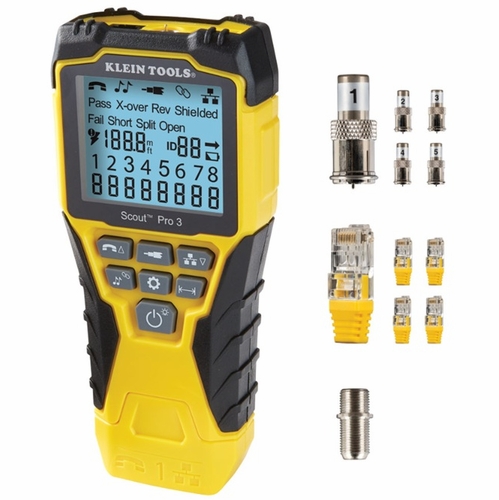

KLEIN VDV501-851 Ethernet Cable Tester Kit w/Scout® Pro 3 Tester, Remotes, Adapter 092644692260
KLEIN VDV501-851 Ethernet Cable Tester Kit w/Scout® Pro 3 Tester, Remotes, Adapter 092644692260
P/N VDV501-851 Ethernet Cable Tester Kit w/Scout® Pro 3 Tester Remotes, Adapter UPC 092644692260
Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results Measure cable length up to 2000 feet (610 m) Test for Open, Short, Miswire or Split-Pair faults Backlit LCD screen displays cable length, wiremap, cable ID and test results Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately) Hub blink mode to identify port location on a hub or a switch LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included) Auto Power-off feature to conserve battery life (9V included) Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery
Specifications Type: Twisted Pair, DATA, Voice, LAN, and Coaxial Application: Cable Testing
Special Features: Measures Cable Length; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm) Overall Height: 3'' (7.6 cm) Overall Width: 1.25'' (3.2 cm) Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes
Batteries: 9V Alkaline Battery Life: Active: 50 hr
Drop Protection: 2 m Supported Remotes: 18 Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet / Data and Coaxial Accuracy: Length Measurement: +/- 5% (ft) or 5% m
Included: Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery Standard: CE
Weight: 1.2 lb (0.5 kg) UPC: 092644692260
