KLEIN VDV501-852 Scout Pro 3 Tester with Locator Remote Kit 092644583261
Available*
Item # 82000186
Model # VDV501-852
$199.99
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TONE/PROBE
Test Equipment
Tone Generators- Probes-Amplifiers
Kits
Klein Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

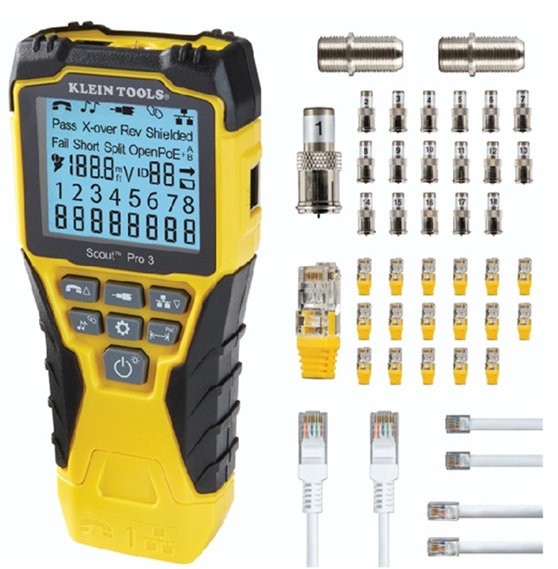

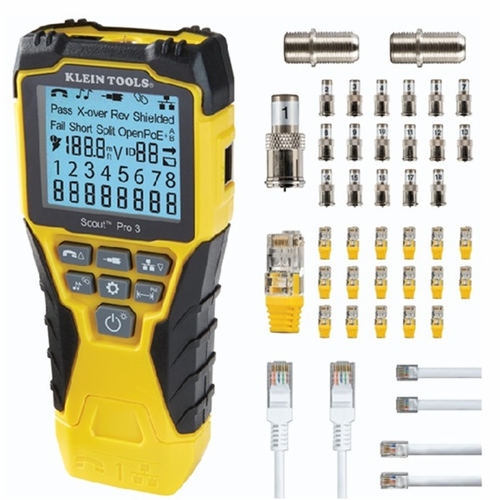

KLEIN VDV501-852 Scout Pro 3 Tester with Locator Remote Kit 092644583261
KLEIN VDV501-852 Scout Pro 3 Tester with Locator Remote Kit 092644583261
P/N VDV501-852 Scout Pro 3 Tester With Locator Remote Kit UPC 092644583261
Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step Power over Ethernet Tester that displays PoE wire and Voltage Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately) Measures cable length up to 2,000 feet (610 m) Identify multiple cable runs with location-mapping remotes Identify Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery Detect, identify and test Power over Ethernet (PoE) Backlit LCD screen displays cable length, wiremap, cable ID and test results Hub blink mode to identify port location on a hub or a switch Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers Includes a 9V battery and convenient carrying case
Specifications Type: Twisted Pair, DATA, Voice, LAN, and Coaxial Application: Cable Testing
Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm) Overall Height: 3.2'' (8 cm) Overall Width: 1.5'' (3.8 cm)
Material: Plastic and Metal Test-n-Map ID Remotes: (1) Self-Storing Location ID: (18) RJ45 Data and (18) F-Coax Locator Remotes
Batteries: 9V Alkaline Battery Life: Active: 50 hr
Drop Protection: 2 m Supported Remotes: 18 Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected: Open, Short, Miswire Test & Measure Types: Ethernet, Data, Coaxial Accuracy: Length Measurement: +/- 5% (ft) or 5% m
Included: Tester, Self-storing Test + Map™ Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6''), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
Standard: CE Weight: 1.2 lb (0.5 kg) UPC: 092644583261
Warnings Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use. Always wear approved eye protection. Do NOT use on energized circuits.
