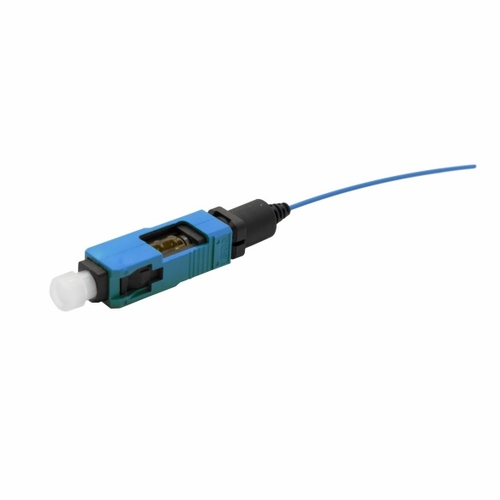

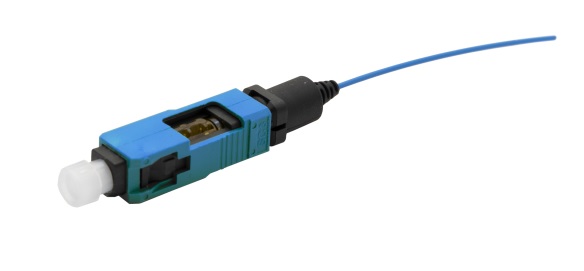

Multilink 066-024-10 Singlemode Sc/Upc Connector Blue Housing 9/125 Surelight Field Installable
Available*
Item # 51296335
Model # 066-024-10
$7.72
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connector
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 066-024-10 Singlemode Sc/Upc Connector Blue Housing 9/125 Surelight Field Installable
Multilink 066-024-10 Singlemode Sc/Upc Connector Blue Housing 9/125 Surelight Field Installable
Surelight® Field Installable Connector - Sc/Upc, Singlemode, 250Um/900Um 066-024-10 Sc/Upc, Singlemode, 250Um/900Um
General Specifications Nominal Fiber Od 125Um Reusable/Times Yes/5 Durability < .3 Db, 500 Rating Technology Epoxy Free No Polish Tension < .2 Db, Change 3Kg Intermateibility Tia/Eia 604-3 Installation Time 3-5 Minutes
General Specifications Product Type Field Installable Connector
Fiber Specifications Fiber Category Singlemode (Os1) Cable Compatibility 250Um/900Um Insertion Loss Typical 0.3 Db Reflectance, Typical #1 < -50 Db
Connector Specifications Connector Type Sc/Upc Polish Upc Housing Color Blue Housing Material Composite Ferrule Material Zirconia Boot Color Gray
Environmental Specifications Operating Temperature -40°C To +75°C
Safety Standard Specifications Standards Eia/Tia 568-B.3
Multilink 066-024-10 Singlemode Sc/Upc Connector Blue Housing 9/125 Surelight Field Installable
Surelight® Field Installable Connector - Sc/Upc, Singlemode, 250Um/900Um 066-024-10 Sc/Upc, Singlemode, 250Um/900Um
General Specifications Nominal Fiber Od 125Um Reusable/Times Yes/5 Durability < .3 Db, 500 Rating Technology Epoxy Free No Polish Tension < .2 Db, Change 3Kg Intermateibility Tia/Eia 604-3 Installation Time 3-5 Minutes
General Specifications Product Type Field Installable Connector
Fiber Specifications Fiber Category Singlemode (Os1) Cable Compatibility 250Um/900Um Insertion Loss Typical 0.3 Db Reflectance, Typical #1 < -50 Db
Connector Specifications Connector Type Sc/Upc Polish Upc Housing Color Blue Housing Material Composite Ferrule Material Zirconia Boot Color Gray
Environmental Specifications Operating Temperature -40°C To +75°C
Safety Standard Specifications Standards Eia/Tia 568-B.3
