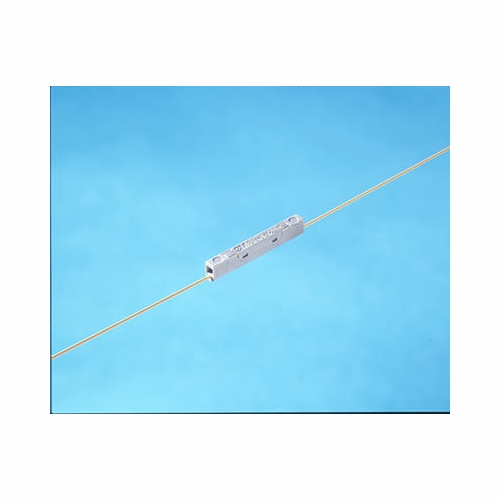

3M FIBRLOK 2525 READ NOTE,
Available*
Item # 51700000
Model # 2525
$4.73
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTOR
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
3M
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

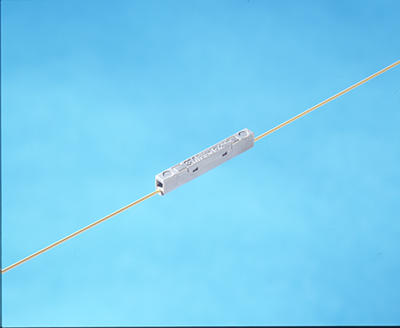

3M FIBRLOK 2525 READ NOTE, NEW This splice requires two 250 micron coated fibers.
3M mechanical splices are as follows:
2525 - 250 micron coatings only.
2590 - one 250 micron coating and one 900 micron coating.
2599 - 900 micron coatings only.
2529 - 250 or 900 micron coatings.
The 3M Mechanical Spice can be used with either single-mode or multimode fibers with a glass cladding diameter of 125 microns. The assembly requires only the removal of the fiber coating, and cleaning and cleaving of the fiber. 2501 Assembly Tool turns any crafts person into a splicing expert. The splice needs no epoxy or electricity and installation time is within 3 minutes.
Size 4 x 4 x 40 mm Weight approx. 1g Mean insertion loss <0.2 dB Reflection better than < -40 dB at room temperature Temperature cycling 70°C to -45°C 10 cycles, loss change <0.3 dB High Humid -10°C, 25°C, 65°C (@93% RH), 10 cycles, loss change <0.3 dB Tensile strength 3N 60 sec., loss change <0.2 dB Vibration 1.5 mm P-P, 10 55 Hz Sweeps, 2h 3way, loss change <0.2 dB Coating 250 um Fiber 125 um
note:This splice uses the same tools as the 2529, and the same basic procedures. The color of the 2525 is black instead of gray as the 2529. That is the only noticeable difference to an end user.
The 3M Mechanical Spice can be used with either single-mode or multimode fibers with a glass cladding diameter of 125 microns. The assembly requires only the removal of the fiber coating, and cleaning and cleaving of the fiber. 2501 Assembly Tool turns any crafts person into a splicing expert. The splice needs no epoxy or electricity and installation time is within 3 minutes.
Size 4 x 4 x 40 mm Weight approx. 1g Mean insertion loss <0.2 dB Reflection better than < -40 dB at room temperature Temperature cycling 70°C to -45°C 10 cycles, loss change <0.3 dB High Humid -10°C, 25°C, 65°C (@93% RH), 10 cycles, loss change <0.3 dB Tensile strength 3N 60 sec., loss change <0.2 dB Vibration 1.5 mm P-P, 10 55 Hz Sweeps, 2h 3way, loss change <0.2 dB Coating 250 um Fiber 125 um
note:This splice uses the same tools as the 2529, and the same basic procedures. The color of the 2525 is black instead of gray as the 2529. That is the only noticeable difference to an end user.
