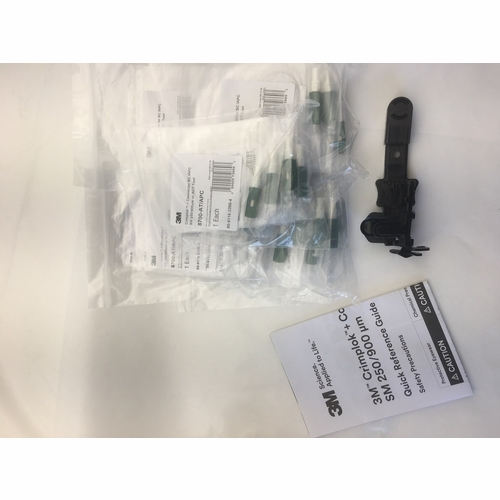

3M CORNING 8700-AT/APC CRIMPLOK+ SC/APC SM 250/900UM W/ACTIVATION TOOL PK/60 80611622004
Available*
Item # 51765000
Model # 80611622004
$1,138.05
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTOR
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Corning Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
3M CORNING 8700-AT/APC CRIMPLOK+ SC/APC SM 250/900UM W/ACTIVATION TOOL PK/60 80611622004
SC Singlemode and Multimode 250 µm/900 µm 3M™ Crimplok™+ Connectors provide fast, easy field termination of 250 and 900 µm singlemode and multimode fiber without a splice gel or adhesive. A metallic element within the connector mechanically locks the fiber in place. To install, the fiber is cleaved, inserted through the connector and locked in place using the 3M™ Crimplok™+ Activation Tool and round-shape protrusionsetting cap, which comes with every connector. The fiber tip is polished with the 3M™ Crimplok™+ Nano Finishing Tool. This hand tool utilizes a polishing film and an orbital mechanism that polishes with a single turn of the handle.
3M™ Crimplok™+ Connectors have a thermally balanced design that is tested for premises and FTTP applications for indoor and outdoor conditions. The streamlined boot attached to the connector body minimizes the chance of losing or forgetting to install it during the termination process. After the installation, the boot keeps the fiber from kinking, even during side pull.
3M™ Crimplok™+ Connector SC Family
Features Benefits No splice, gel or adhesive No splice interface/potential optical loss point Simple one-piece assembly tools Fast, easy installation without electrical power Angle nano finishing tool for SC/APC connectors Helps eliminate high CapEx of angle cleaver Polishing film/Protrusion-setting cap with every connector APC: Green lapping film /Translucent white cap UPC: White lapping film /Translucent blue cap Always have new polishing film and appropriate protrusion-setting caps for respective APC and
UPC connectors One-piece, pre-assembled design No small, loose parts Field termination Always the right cable length with virtually no cable slack to store
SC/APC angle polish Low reflectance, <-60 dB for outdoor temperatures
SC Singlemode and Multimode 250 µm/900 µm 3M™ Crimplok™+ Connectors provide fast, easy field termination of 250 and 900 µm singlemode and multimode fiber without a splice gel or adhesive. A metallic element within the connector mechanically locks the fiber in place. To install, the fiber is cleaved, inserted through the connector and locked in place using the 3M™ Crimplok™+ Activation Tool and round-shape protrusionsetting cap, which comes with every connector. The fiber tip is polished with the 3M™ Crimplok™+ Nano Finishing Tool. This hand tool utilizes a polishing film and an orbital mechanism that polishes with a single turn of the handle.
3M™ Crimplok™+ Connectors have a thermally balanced design that is tested for premises and FTTP applications for indoor and outdoor conditions. The streamlined boot attached to the connector body minimizes the chance of losing or forgetting to install it during the termination process. After the installation, the boot keeps the fiber from kinking, even during side pull.
3M™ Crimplok™+ Connector SC Family
Features Benefits No splice, gel or adhesive No splice interface/potential optical loss point Simple one-piece assembly tools Fast, easy installation without electrical power Angle nano finishing tool for SC/APC connectors Helps eliminate high CapEx of angle cleaver Polishing film/Protrusion-setting cap with every connector APC: Green lapping film /Translucent white cap UPC: White lapping film /Translucent blue cap Always have new polishing film and appropriate protrusion-setting caps for respective APC and
UPC connectors One-piece, pre-assembled design No small, loose parts Field termination Always the right cable length with virtually no cable slack to store
SC/APC angle polish Low reflectance, <-60 dB for outdoor temperatures
