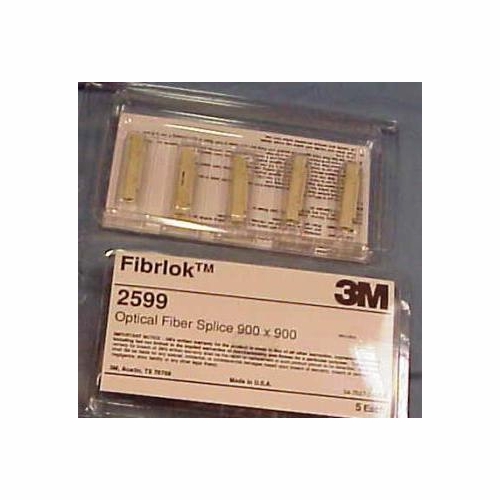

3M FIBRLOK 2599 CONNECTORS PRICE IS PER EACH CONNECTOR- SOLD IN PACKS OF 5
Available*
Item # 51740000
Model # 2599
$1.82
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTOR
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
3M
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

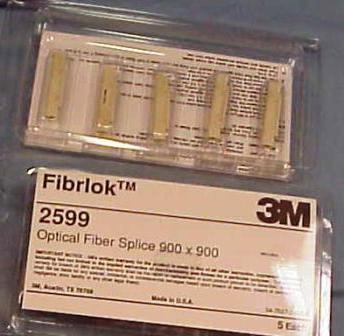

3M FIBRLOK 2599 CONNECTORS PRICE IS PER EACH CONNECTOR- SOLD IN PACKS OF 5 This splice requires two 900 micron coated fibers.
3M mechanical splices are as follows:
2525 - 250 micron coatings only.
2590 - one 250 micron coating and one 900 micron coating.
2599 - 900 micron coatings only.
2529 - 250 or 900 micron coatings - universal.
The 3M Mechanical Spice can be used with either single-mode or multimode fibers with a glass cladding diameter of 125 microns. The assembly requires only the removal of the fiber coating, and cleaning and cleaving of the fiber. The 2501 Assembly Tool turns any crafts person into a splicing expert. The splice needs no epoxy and electricity and installation time is within 3 minutes.
Size 4 x 4 x 40 mm Weight approx. 1g Mean insertion loss <0.2 dB Reflection >40 dB at room temperature Temperature cycling 70°C to -45°C 10 cycles, loss change <0.3 dB High Humid -10°C, 25°C, 65°C (@93% RH), 10 cycles, loss change <0.3 dB Tensile strength 3N 60 sec., loss change <0.2 dB Vibration 1.5 mm P-P, 10 55 Hz Sweeps, 2h 3way, loss change <0.2 dB Coating 250 um, Fiber 125 um on one end and 900 um 125 on the other. Commonly used to splice pigtail to main fiber.
The 3M Mechanical Spice can be used with either single-mode or multimode fibers with a glass cladding diameter of 125 microns. The assembly requires only the removal of the fiber coating, and cleaning and cleaving of the fiber. The 2501 Assembly Tool turns any crafts person into a splicing expert. The splice needs no epoxy and electricity and installation time is within 3 minutes.
Size 4 x 4 x 40 mm Weight approx. 1g Mean insertion loss <0.2 dB Reflection >40 dB at room temperature Temperature cycling 70°C to -45°C 10 cycles, loss change <0.3 dB High Humid -10°C, 25°C, 65°C (@93% RH), 10 cycles, loss change <0.3 dB Tensile strength 3N 60 sec., loss change <0.2 dB Vibration 1.5 mm P-P, 10 55 Hz Sweeps, 2h 3way, loss change <0.2 dB Coating 250 um, Fiber 125 um on one end and 900 um 125 on the other. Commonly used to splice pigtail to main fiber.
