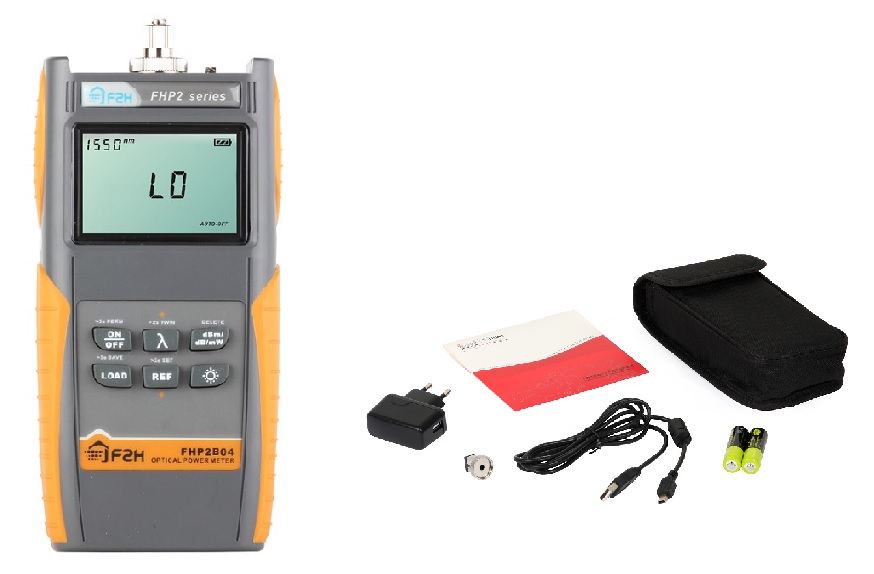

Fhp-2B04 Optical Power Meter 850/1300/1310/1550/1625Nm Fc/Sc/St/Lcupcpc -40 To +23Dbm
Available*
Item # 53489837
Model # FHM-2B04
$236.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Schultz Communications Inc
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Fhp-2B04 Optical Power Meter 850/ 1300/ 1310/ 1490/ 1550/ 1625Nm -50 To 26Db, Fc Sc St Lc Connectors
Fhp-2B04 Optical Power Meter 850/1300/1310/1550/1625Nm Fc/Sc/St/Lcupcpc New -40 To +23Dbm
Further Details: - Ideal For Testing Transmission Quality In Lans, Wans, Telecommunications Networks, And Other Long-Distance Applications. - Use To Identify Optical Fiber Strands, Measure Optical Attenuation, Verify Continuity, And Test Transmission Quality. - Detects And Adjusts To Different Frequencies Automatically. - Referencing Function Helps Ensure Efficiency, Even When Two Units Are Far Apart. - An Auto-Off Feature Saves Battery Power. - Includes Two Rechargeable Ni-Mh Batteries And An Ac Adapter. - Low-Battery Indicator Reminds You To Recharge The Battery. - Lcd Backlight Enables You To Work In The Dark. - Three Measurement Modes: Power (Dbm), Relative (Db), And Logarithmic (Mw). - Transfer Data To A Pc Via A Usb Connection. - With The Included Software, Data Can Be Saved As An Excel® File Or Plain Text. - Includes Fc/Pc, Sc/Pc, And St/Pc, Lc/Pc Interchangeable Connectors.
Technical Specifications - Auto Power Off Yes - Accuracy* ±5% 1 Nw - Backlight Yes - Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625 Nm - Detector Type Ingaas - Measuring Range -40 To +23 Dbm - Reference Value Yes - Resolution 0.01 Db @ -40 To +23 Dbm - Temperature Operating: +14 To +122F (-10 To +50C); - Storage: -4 To +158F (-20 To +70C) - Connectors Fc/Pc, Sc/Pc, Usb - Power Supply (2) 1.2-V Ni-Mh Batteries, Ac Adapter (Included) - Size 6.3"H X 3.0"W X 1.8"D (16.0 X 7.6 X 4.5 Cm) - Weight 0.6 Lb. (0.3 Kg)
Fhp-2B04 Optical Power Meter 850/1300/1310/1550/1625Nm Fc/Sc/St/Lcupcpc New -40 To +23Dbm
Further Details: - Ideal For Testing Transmission Quality In Lans, Wans, Telecommunications Networks, And Other Long-Distance Applications. - Use To Identify Optical Fiber Strands, Measure Optical Attenuation, Verify Continuity, And Test Transmission Quality. - Detects And Adjusts To Different Frequencies Automatically. - Referencing Function Helps Ensure Efficiency, Even When Two Units Are Far Apart. - An Auto-Off Feature Saves Battery Power. - Includes Two Rechargeable Ni-Mh Batteries And An Ac Adapter. - Low-Battery Indicator Reminds You To Recharge The Battery. - Lcd Backlight Enables You To Work In The Dark. - Three Measurement Modes: Power (Dbm), Relative (Db), And Logarithmic (Mw). - Transfer Data To A Pc Via A Usb Connection. - With The Included Software, Data Can Be Saved As An Excel® File Or Plain Text. - Includes Fc/Pc, Sc/Pc, And St/Pc, Lc/Pc Interchangeable Connectors.
Technical Specifications - Auto Power Off Yes - Accuracy* ±5% 1 Nw - Backlight Yes - Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625 Nm - Detector Type Ingaas - Measuring Range -40 To +23 Dbm - Reference Value Yes - Resolution 0.01 Db @ -40 To +23 Dbm - Temperature Operating: +14 To +122F (-10 To +50C); - Storage: -4 To +158F (-20 To +70C) - Connectors Fc/Pc, Sc/Pc, Usb - Power Supply (2) 1.2-V Ni-Mh Batteries, Ac Adapter (Included) - Size 6.3"H X 3.0"W X 1.8"D (16.0 X 7.6 X 4.5 Cm) - Weight 0.6 Lb. (0.3 Kg)
