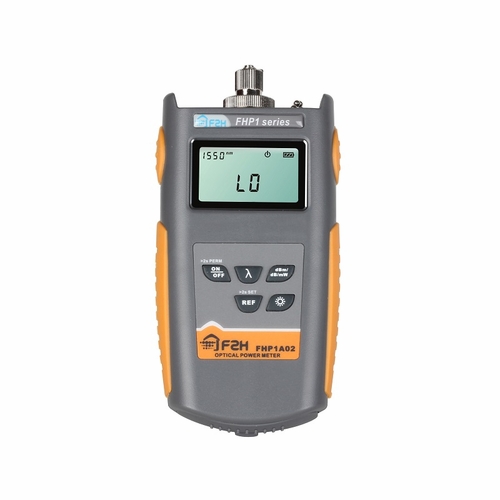

FHP-1A02 Optical Power Meter, Wavelength 850/ 1300/ 1310/ 1490/ 1550/ 1625nm, With Carrying Bag

FHP-1A02 Optical Power Meter, Wavelength 850/ 1300/ 1310/ 1490/ 1550/ 1625nm, With Carrying Bag FHP-1A02 Optical Power Meter Quick Facts: - Use to identify optical fiber strands, measure optical attenuation, verify continuity, and test transmission quality. - This basic power meter is ideal for the data centers, labs, and occasional fiber testing. - Works at six wavelengths: 850, 1300, 1310, 1490, 1550, and 1625 nm. Further Details: - Referencing function helps ensure efficiency, even when two units are far apart. - An auto-off feature saves battery power. - Includes a rechargeable lithium ion battery and an AC adapter. - Low-battery indicator reminds you to recharge the battery. - LCD backlight enables you to work in the dark. - Three measurement modes: power (dBm), relative (dB), and logarithmic (mW). - Includes a FC/PC interchangeable connector. - Technical Specifications for Basic Optical Power Meter: - Auto Power Off Yes - Accuracy* ±0.35 dB 10 nW - Backlight Yes - Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625 nm - Detector Type InGaAs - Measuring Range -60 to +3 dBm - Reference Value Yes - Resolution 0.01 dB - Temperature Operating: +14 to +122F (-10 to +50C); - Storage: -4 to +158F (-20 to +70C) - Connectors FC/PC interchangeable connector included - Power Supply (1) lithium ion battery, AC adapter - Size 1.2"H x 2.5"W x 4.5"D (3 x 6.3 x 11.4 cm) - Weight 3.1 lb. (1.4 kg) * Valid at 1500 nm, CW, 23C 3C, relative humidity less than or equal to 70%, with an FC connector
