JONARD FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter 811490019966
Available*
Item # 37301992
Model # FPM-50A
$279.95
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POWER MTR
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Jonard Industries Corp
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

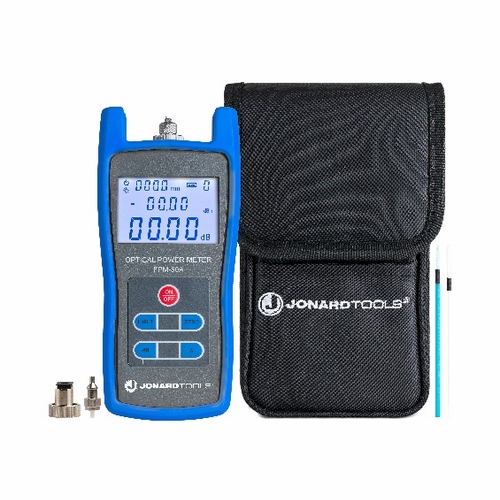

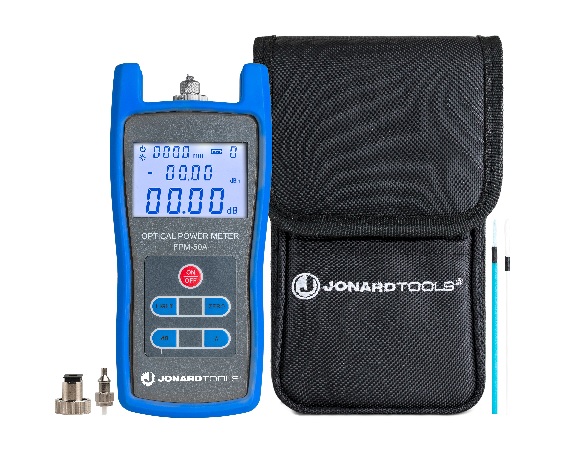

JONARD FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter 811490019966
The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power Special function of the unit allows the device to be manually calibrated as needed LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool The FC/SC adapters are for APC/PC/UPC connectors The LC adapter is for PC/UPC connectors only Includes:
Fiber Optic Power Meter Instruction Manual Protective Cover (3) AA Batteries (required for operation) (2) Cleaning Swabs FC Adapter LC Adapter SC Adapter Nylon Carry Case
Measurement Range: -50 dBm to +26 dBm
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type InGaAs
Measurement Range -50 dBm to +26 dBm
Single Mode Range 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, = ± 0.25 dB
Multi Mode Range 850, 1300 nm, = ± 0.8 dB
Resolution 0.01 dB
Operating Time = 130 hours
Battery Type (3) AA batteries
Dimensions 7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm)
Weight 1.50 lb (680 g)
UPC # 811490019966
The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power Special function of the unit allows the device to be manually calibrated as needed LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool The FC/SC adapters are for APC/PC/UPC connectors The LC adapter is for PC/UPC connectors only Includes:
Fiber Optic Power Meter Instruction Manual Protective Cover (3) AA Batteries (required for operation) (2) Cleaning Swabs FC Adapter LC Adapter SC Adapter Nylon Carry Case
Measurement Range: -50 dBm to +26 dBm
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type InGaAs
Measurement Range -50 dBm to +26 dBm
Single Mode Range 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, = ± 0.25 dB
Multi Mode Range 850, 1300 nm, = ± 0.8 dB
Resolution 0.01 dB
Operating Time = 130 hours
Battery Type (3) AA batteries
Dimensions 7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm)
Weight 1.50 lb (680 g)
UPC # 811490019966
