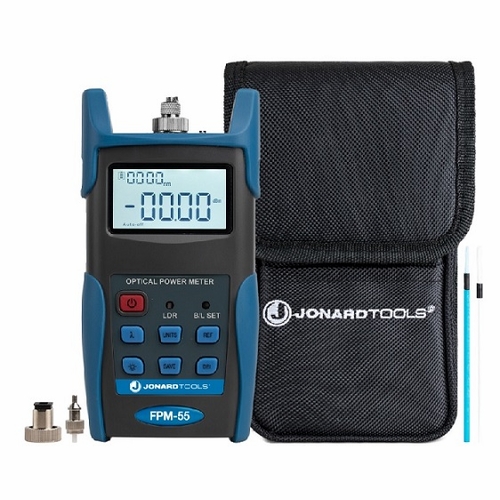

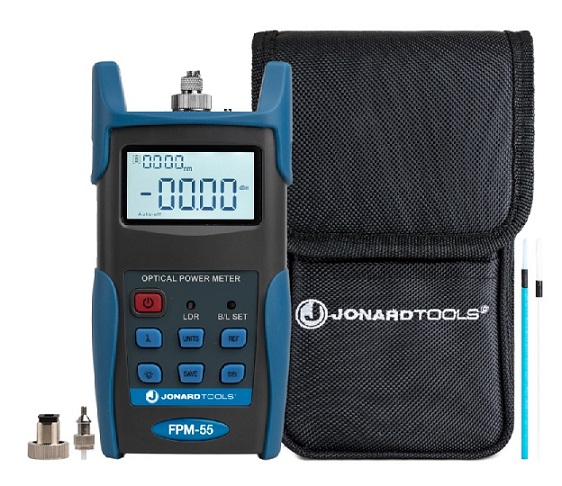

JONARD FPM-55 Fiber Optic Power Meter w/Data Storage (-50 to +25 dBm) FC/SC/LC adapt 810053350416
Available*
Item # 37301993
Model # FPM-55
$428.95
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POWER MTR
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Jonard Industries Corp
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD FPM-55 Fiber Optic Power Meter w/Data Storage (-50 to +25 dBm) FC/SC/LC adapt 810053350416
JONARD FPM-55 Fiber Optic Power Meter w/Data Storage (-50 to +25 dBm) FC/SC/LC adapt 810053350416
The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption Stores up to 1,000 data entries which can be downloaded via USB Reference power level can be set up and stored via included software Auto-off function can be turned on or off Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool The FC/SC adapters are for APC/PC/UPC connectors The LC adapter is for PC/UPC connectors only
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type InGaAs
Measurement Range -50 dBm to +26 dBm
Single Mode Range 980, 1310, 1490, 1550, 1625, 1650 nm, = ± 0.25 dB
Multi Mode Range 850, 1300 nm, = ± 0.8 dB
Data Storage Capacity 1000 entries
Resolution 0.01 dB
Operating Time 200 hours (without backlight)
Battery Type (3) AA batteries
Dimensions 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
Weight 0.66 lb (299.64 g)
UPC # 810053350416
JONARD FPM-55 Fiber Optic Power Meter w/Data Storage (-50 to +25 dBm) FC/SC/LC adapt 810053350416
The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption Stores up to 1,000 data entries which can be downloaded via USB Reference power level can be set up and stored via included software Auto-off function can be turned on or off Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool The FC/SC adapters are for APC/PC/UPC connectors The LC adapter is for PC/UPC connectors only
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type InGaAs
Measurement Range -50 dBm to +26 dBm
Single Mode Range 980, 1310, 1490, 1550, 1625, 1650 nm, = ± 0.25 dB
Multi Mode Range 850, 1300 nm, = ± 0.8 dB
Data Storage Capacity 1000 entries
Resolution 0.01 dB
Operating Time 200 hours (without backlight)
Battery Type (3) AA batteries
Dimensions 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
Weight 0.66 lb (299.64 g)
UPC # 810053350416
