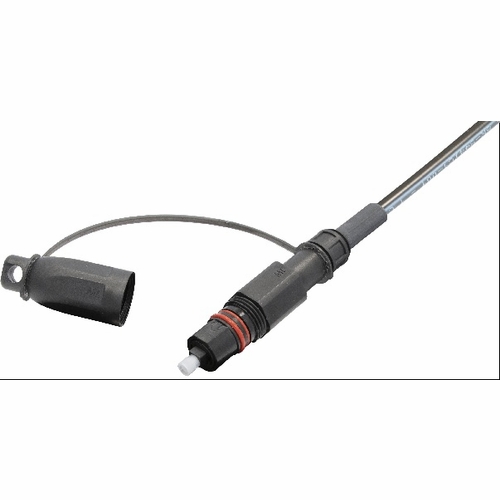

Multilink 066-458-65 KIT CONN SC/APC H IP ROUND DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
Available*
Item # 51291635
Model # 066-458-65
$20.03
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTORS
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

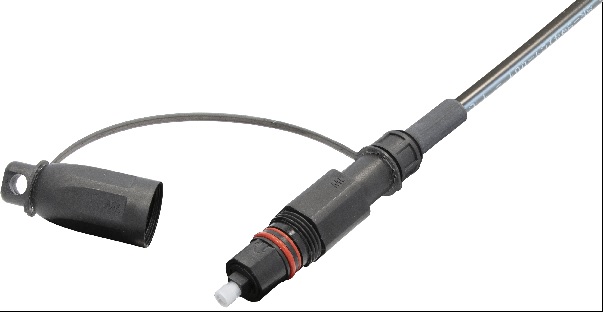

Multilink 066-458-65 KIT CONN SC/APC H IP ROUND DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
Multilink 066-458-65 KIT CONN SC/APC H IP ROUND DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
SC/APC Compression Seal, Round Drop
General Specifications Minimum Bend Radius 80mm (3.15 in) Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Environment Outdoor Max. Tensile Strength Short Term: 1350 N (300 Lbf) Reflectance, Typical #1 < -65 dB Cable Torsion 10 Cycle of Torsion Loading Water Resistance IP68 Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Product Type Field Installable Connector Thermal Aging 7 days/85° C Thermal Cycling 7 days/-40° C to 75° C Humidity Aging 7 days/75° C/95% RH Fiber Specifications Insertion Loss Typical .2-.45 db typical Fiber Category Singlemode (OS2) Cable Compatibility Round Drop Round Reflectance, Typical #1 < -65 dB
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Vibration Test 10 to 55Hz at the Rate of 45Hz/min. for 2 Hours Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range -40°C to 70°C (-40°F to 158°F) Operating Temperature - 40° C to 70° C (-40° F to 158° F)
Multilink 066-458-65 KIT CONN SC/APC H IP ROUND DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
SC/APC Compression Seal, Round Drop
General Specifications Minimum Bend Radius 80mm (3.15 in) Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Environment Outdoor Max. Tensile Strength Short Term: 1350 N (300 Lbf) Reflectance, Typical #1 < -65 dB Cable Torsion 10 Cycle of Torsion Loading Water Resistance IP68 Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Product Type Field Installable Connector Thermal Aging 7 days/85° C Thermal Cycling 7 days/-40° C to 75° C Humidity Aging 7 days/75° C/95% RH Fiber Specifications Insertion Loss Typical .2-.45 db typical Fiber Category Singlemode (OS2) Cable Compatibility Round Drop Round Reflectance, Typical #1 < -65 dB
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Vibration Test 10 to 55Hz at the Rate of 45Hz/min. for 2 Hours Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range -40°C to 70°C (-40°F to 158°F) Operating Temperature - 40° C to 70° C (-40° F to 158° F)
