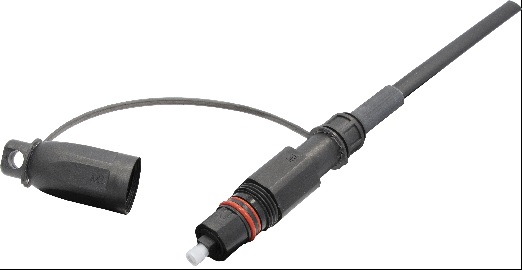

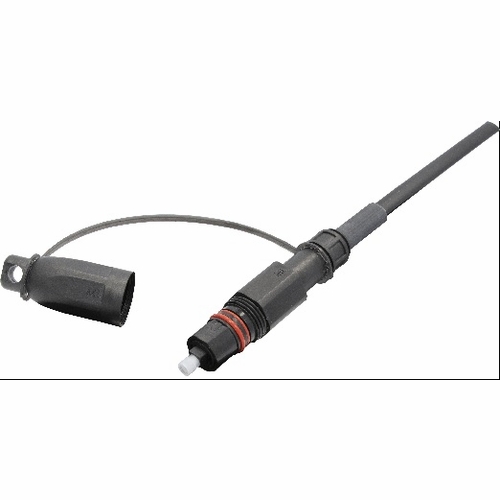

Multilink 066-458-45 KIT CONN SC/APC H IP FLAT DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE H
Available*
Item # 51291645
Model # 066-458-45
$18.51
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTORS
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 066-458-45 KIT CONN SC/APC H IP FLAT DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE H
Multilink 066-458-45 KIT CONN SC/APC H IP FLAT DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE H
SC/APC Compression Seal, Flat Drop
General Specifications Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Environment Outdoor Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Reflectance, Typical #1 < -65 dB Cable Torsion 10 Cycle of Torsion Loading Max. Tensile Strength Short Term: 1350 N (300 Lbf) Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Thermal Aging 7 days/85° C Water Resistance IP68 Minimum Bend Radius 80mm (3.15 in) Product Type Field Installable Connector Max. Tensile Strength Short Term: 1350N (300 Lbf) Thermal Cycling 7 days/-40° C to 75° C Humidity Aging 7 days/75° C/95% RH
Fiber Specifications Fiber Category Singlemode (OS2) Cable Compatibility Flat Drop Insertion Loss Typical .2-.45 db typical
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Vibration Test 10 to 55Hz at the Rate of 45Hz/min. for 2 Hours Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range -40°C to 70°C (-40°F to 158°F) Operating Temperature -40° C to 70° C (-40° F to 158° F)
Multilink 066-458-45 KIT CONN SC/APC H IP FLAT DROP FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE H
SC/APC Compression Seal, Flat Drop
General Specifications Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Environment Outdoor Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Reflectance, Typical #1 < -65 dB Cable Torsion 10 Cycle of Torsion Loading Max. Tensile Strength Short Term: 1350 N (300 Lbf) Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Thermal Aging 7 days/85° C Water Resistance IP68 Minimum Bend Radius 80mm (3.15 in) Product Type Field Installable Connector Max. Tensile Strength Short Term: 1350N (300 Lbf) Thermal Cycling 7 days/-40° C to 75° C Humidity Aging 7 days/75° C/95% RH
Fiber Specifications Fiber Category Singlemode (OS2) Cable Compatibility Flat Drop Insertion Loss Typical .2-.45 db typical
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Vibration Test 10 to 55Hz at the Rate of 45Hz/min. for 2 Hours Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range -40°C to 70°C (-40°F to 158°F) Operating Temperature -40° C to 70° C (-40° F to 158° F)
